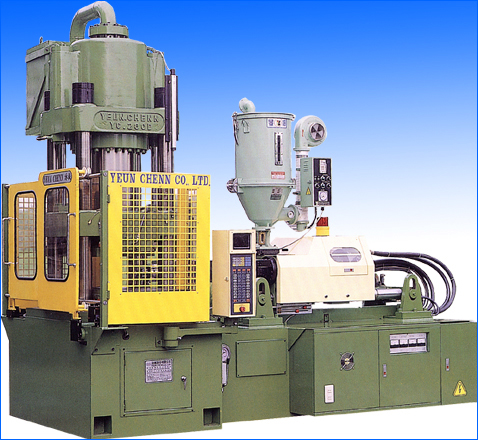

Automatic Vertical Plastic Injection Molding Machine

Advantages
Availability to settle dual slides, operate two sets of same style but different size molds at the same time.
The machine can be installed dual slides and execute two sets of mold with the same shape but different size at the same time, cross changing upper slide and lower slide. When the left mold injection completed, the other right one can go to finish embedding work. This solution can reduce the time to embed and increase production efficency.

Mold closing system Vertical crank type

  1. The machine is specially designed for embedded & double injection products, by direct pressing vertical mold closing and horizontal injection type structure.
  2. Its operation is down by the design that the lower moldboard fixed on the slide, and the upper mold moving up and down to open and close the mold set, so that the embedded object can be located at right positon.
  3. Signal mold slide type, When doing double injection of embedding work, the slide moves the mold to outside of the machine, so as to place the embedded object conveniently.
  4. The oil pressure tank has been processed precisely and is passed restricted quality control. The high quality oil-seal form overseas in the machine can extend using cycle of oil cylinder and oilseals and save maintenance expanse and shutdown loss.
  5. The injection set can be tuned up and down to fix the size of mold.(UP)

Injection System

  1. The auto screen-off function saves power consumption and elongates screen duration.
  2. Operation status monitoring for all input output points and testing points.
  3. Dual-oil-cylinder injection apparatus, stably and homogenously generates output of injection.
  4. High accurate operation of injection and material refueling, the resistive ruler can identify positioning as precise as 0.1mm measure.

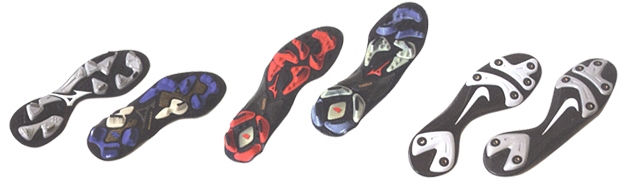

TPU Soles

Specification
Item\Model
Unit
YC-280
Injecting Mechanism
Screw Diameter
mm

S
48
M
52
L
55
Injection Weight (ps)
g(ps) oz
380
13.3
450
15.7
500
17.8
Injection Pressure
Kg/cm 2
1944
1656
1481
Injection Rate
Cm 3/SEC
151
177
198
Screw R.P.M.
R.P.M
0~160
Mold-Close G
Opening Stroke
mm
420
Clamping Force
ton
200
Mold Thickness
mm
190
Inner Distance of Every Two Bars (HXV)
mm
500x400
Hydraulic Pressure Ejector Stroke
mm
135
Slide stroke
mm
530
Pump Motor
HP
Kw
25
18.5
Heater Capacity
Kw
9.6
Total Power Capacity
Kw
28.1
Ic Automatic Thermo-Controller
SET
4
Oil Tank capacity
L
400
Others
Machine Dimension
( L xW x H)
M
3.7x1.9x2.7
Machine Weight ( Approx)
ton
7.5
* The table is subject to use for reference only, and change withoutnotice
Domestic Market
Description
Quantity
1.Drying machine
1 set
2.Tool Box
1 set
3.Vibration proof foot
6 pcs
4.Ejector rod
4 pcs
5.Clamping iron
16 sets
6.Long Injecting Nozzle
1 pc
7.Water separator
1 set
8.Radiating Plate for Injecting Nozzle
1 set
10.Fuse
3 sets


Optional Parts

1.Single Slide
2.Dual-Slide
